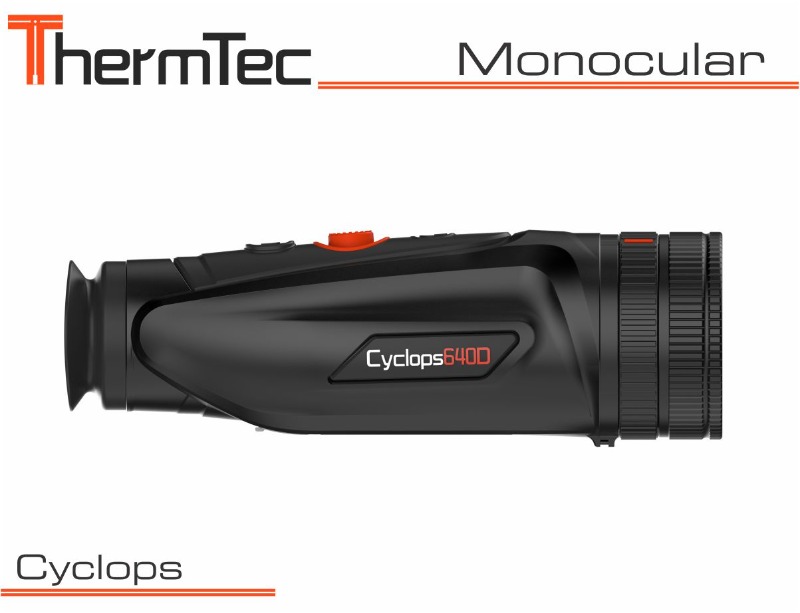

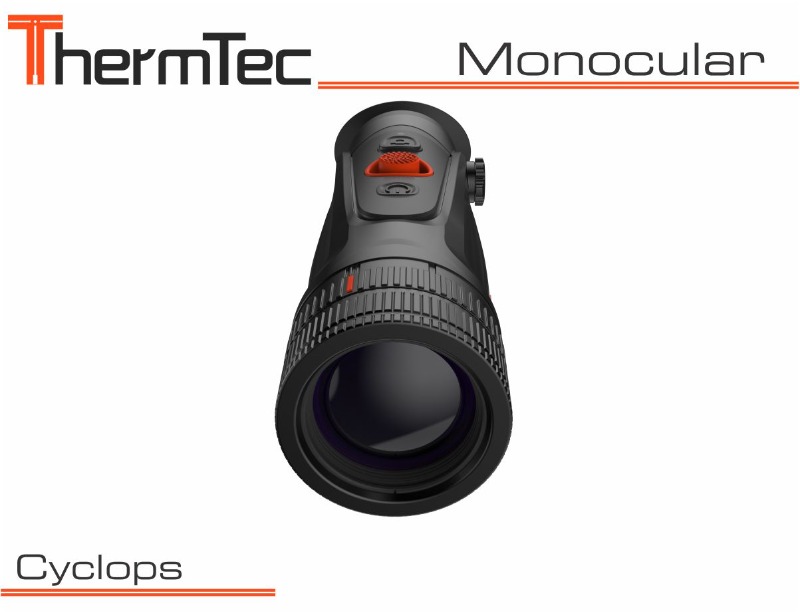

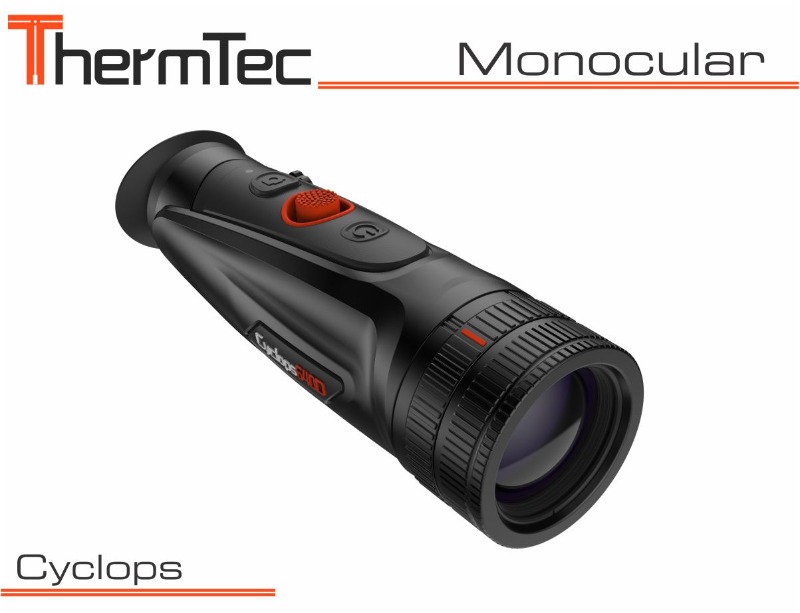

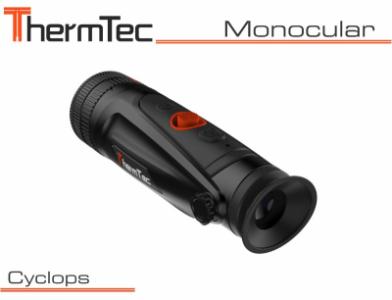

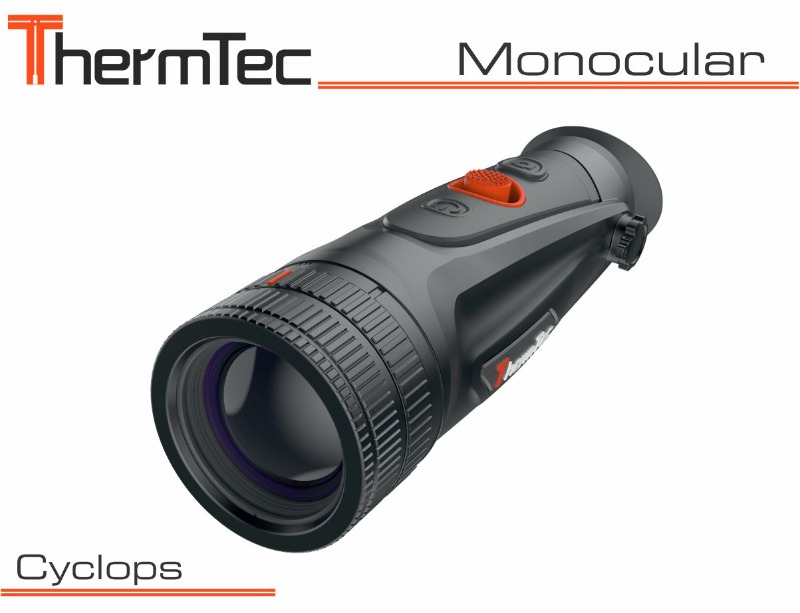

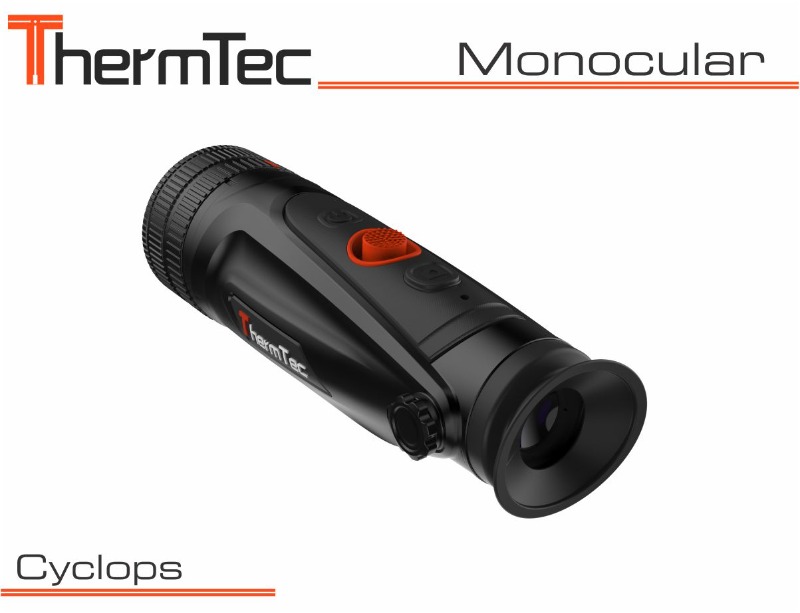

Introducing the ThermTec Cyclops-D CP640D Thermal Monocular, the worlds most advance and versatile device. The Cyclops-D series offers users a market leading dual field of view system allowing the user to switch between lens systems with the twist of a dial, a
DUAL LENS SYSTEM
The Cyclops-D CP640D Thermal Monocular comes with a dual-lens system allowing the user to switch from a 20mm lens to a 40mm lens with the turn of a wheel. The 20mm lens gives the user a wide field of view and the 40mm lens allows for long-range detection and identification of any target.
TWO IMAGE MODES
Designed with both WDR mode and target mode, the ThermTec Cyclops-D series captures details clearly under different scenarios as needed. WDR Mode is suitable for high-contrast lighting conditions, while Target Mode helps you to focus more on your targets.
IP67 PROTECTION
Providing a IP67-rated weatherproof performance, the CP640D is protected from heavy rainfall, snow, smoke, smog, or dust.
| Resolution | 640x512 |
| Pixel pitch | 12µm |
| NETD | 25mk@300k |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Objective lens | 20/40 F1.0 Dual FOV |
| Field of view | 21.7°x17.5° / 11.0°x8.8° |
| Magnification | 1.1X-2.2X |
| Digital zoom | 1-6X continuous zoom |
| Eye relief | 40mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Display type | AMOLED |
| Resolution | 1024x768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Image model | WDR (Wide Dynamic Range) Mode; Object Mode (Object enhanced) |
| Photo/video playback | Yes |
| Language | Multiple-languages |
| Reticle | 7, adjustment coordinates |
| Built-in memory | 32GB |
| PIP | Yes |
| AI/MIL distance measurement | Yes |
| Heat track | Yes |
| GPS | Yes |
| Real-time notification | Yes |
| Internal battery | Internal high capacity lithium ion (18650x2) |
| Battery life | Continuous working time ≥12h |
| Type-C | Supports battery charging, data transfer and analog video output |
| WI-FI | Two-way Wi-Fi connection; App remote control |
| Working temperature | -20℃—+50℃ |
| Protection level | IP67 |
| Weight, g | 550 |
| Size, mm | 200x66x62 |
| External cable | Analog video cable; USB data cable |
| Other accessories | Wrist strap; plush bag; user manual |
