Powa Beam 9in Spotlight Thermal Bracket

Powa Beam 9" 100w Quartz Halogen Spotlight with built-in thermal mount and quick release adaptor. Also includes a DC-DC 12/24v Convertor with USB Type-C for Constant Power Capability

Please note all Powa Beam Spotlights are made to order and can take between 1-2 weeks.

Spotlight Specifications:

• Reflector Size – 245mm (Diameter)
• Casing Size - 265mm (Diameter) x 190mm (Depth)
• Voltage – 12V
• Power – 100W
• Nominal Luminous Flux – 3200lm
• Light Type – Quartz Halogen (QH)
• Beam Type – Adjustable from Spot to Spread
• Base – Steel Bracket with 12mm Mounting Hole

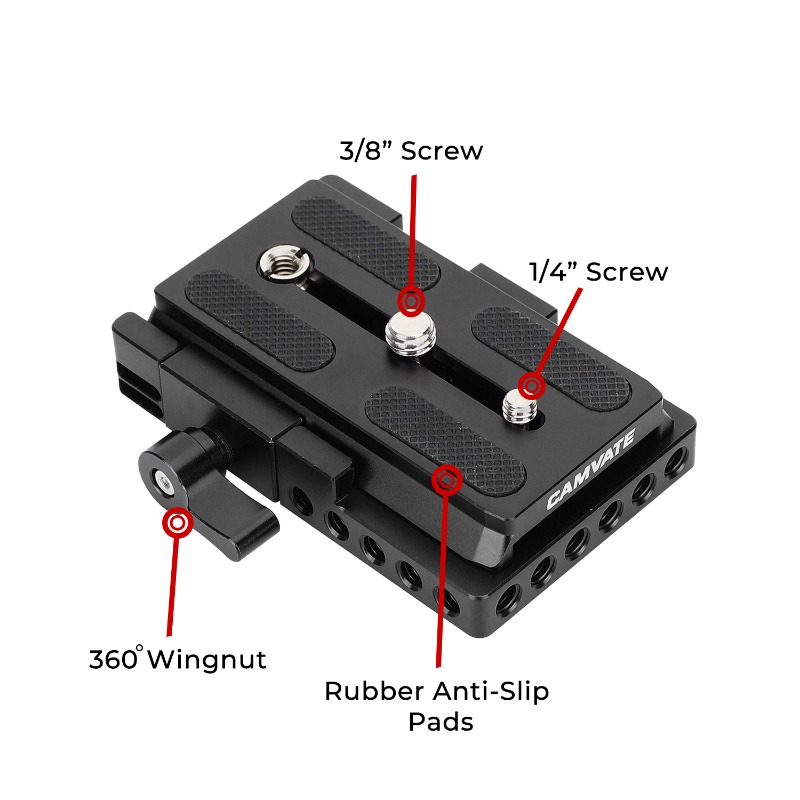

Device Mount Specifications:

• Quick attach/detach
• Secure locking system with backup safety lock for extra peace of mind

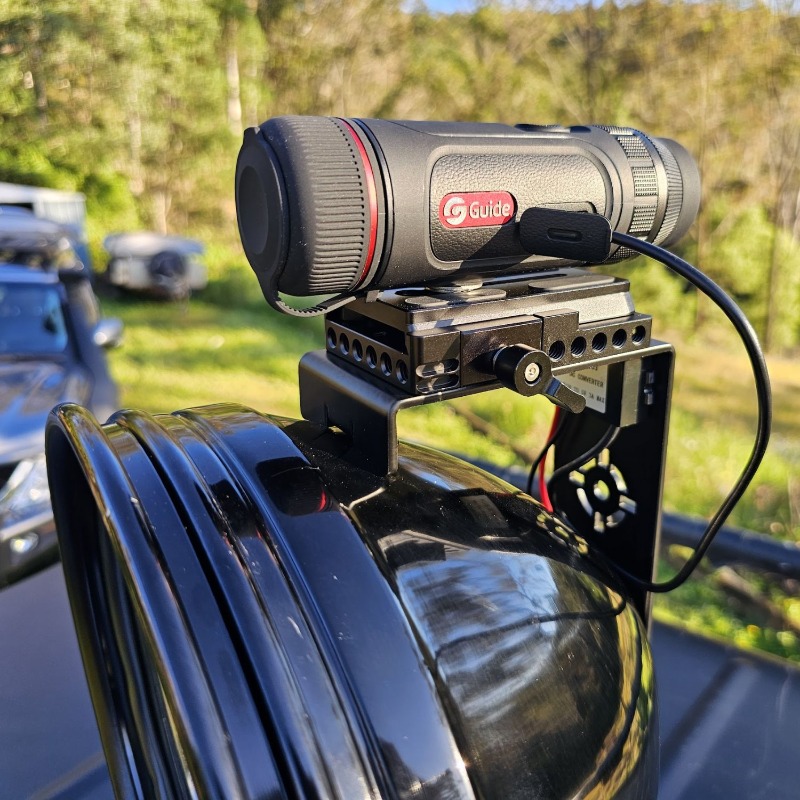

• 1x 1/4" mounting bolt to attach your thermal device or camera
• 1x 3/8" mounting bolt to attach your thermal device or camera
• Rubber Anti-Slip Pads

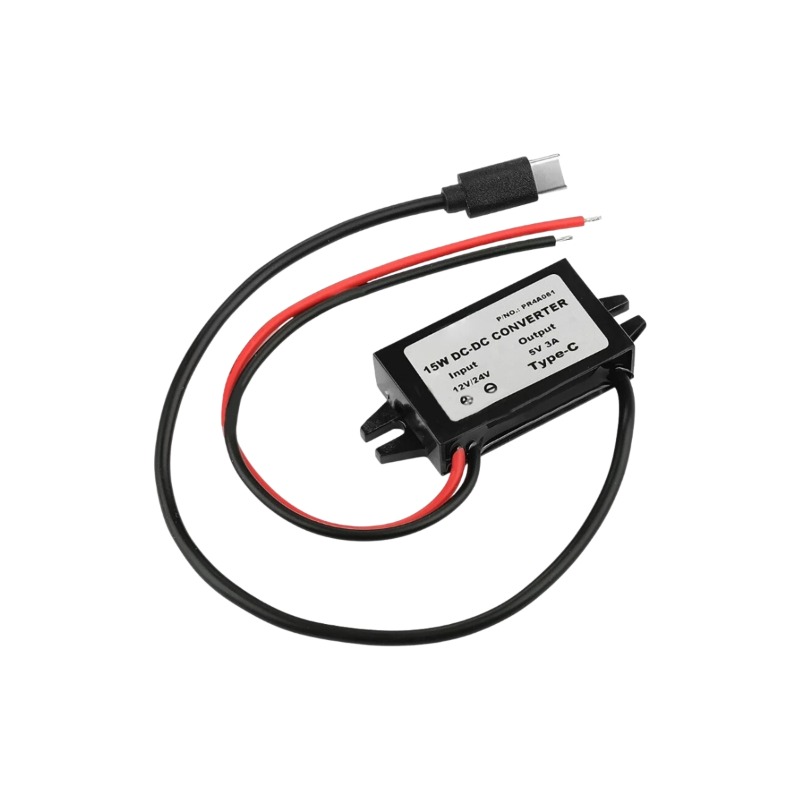

• DC-DC 12/24v Convertor with USB Type-C

Main Components for Modifications & Repairs:

• Bulb: 12V 100W Vertical Filament
• Lens: Toughened Glass
• Reflector: Heat Resistant Alloy Reflector
• Case: Anodized Alloy
• Base: Powder Coated Custom Metal Bracket

Package Includes:

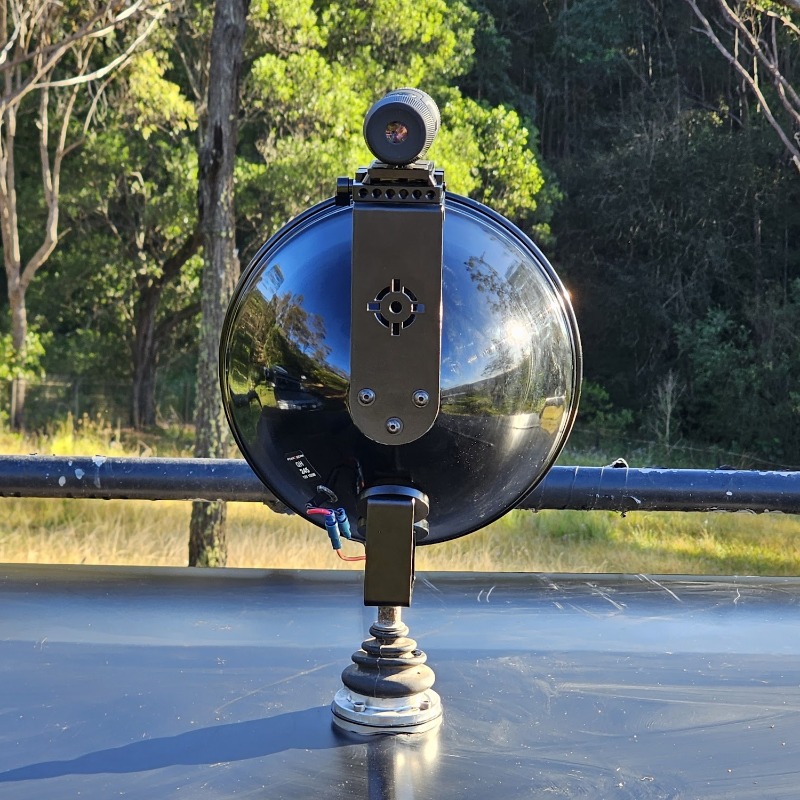

• Powa Beam 9” QH Spotlight with Thermal Mount attached
• 3.5m Cable
• Electrical Connectors
• Battery Clips
• Powa Beam Bumper Sticker

Optional Accessories

• Powa Beam Spotlight Bag – Designed to fit all Powa Beam spotlights, protects your spotlight and gear, but can also be used as a travel or everyday gear bag
• Mounting
  • Quick Draw Remote Control Handle – Recommended when installing your light on top of your car roof
  • Lightweight Remote – Designed for 175mm lights and smaller, most commonly used with the Powa Strut Window Mount.
  • Powa Strut Window Mount – Best choice for casual users who do not want to drill a hole in their car roof
  • SmartRest – This mount is popular with those who head out on their quad bikes and want a hands free 12v lighting solution
• Upgrades
  • Tuff Glass – All spotlights from 2020 are made standard with the durable ultra-clear tuff glass however if you have an older spotlight you are able to purchase the new glass which is compatible with all older models.
  • Anderson Style Plug – You can attach this to your spotlight cable if you have an Anderson plug in your vehicle for easier connection and removal.
  • Adjustable Focus - All spotlights from 2020 are fitted with the adjustable focus system, if you have an older light you can buy a pre-focused reflector as a drop-in solution to upgrade to the new system.
• Customisation
  • Halogen Bulbs 12V – Powa Beam lights come standard with a Life 12V 100W Vertical filament bulb which produces the optimum light output.
  • Red Glass Lens – Red tuff glass used to preserve the eye’s natural adjusted night vision. Used by hunters to avoid spooking game as many see very poorly in the red colour spectrum.

Why Own a Powa Beam?

• Australian Made – The main components of Powa Beam Spotlights are manufactured in Victoria, Australia including the reflectors and outer cases. The lights are then assembled in our warehouse on the Gold Coast QLD with each one hand focused to produce the optimum light beam.
• Designed to Last – Don’t get sucked into buying a cheap light that breaks easily and you have to throw it out and buy a new one every couple of years. With a Powa Beam light you can have the confidence of knowing that they are made from premium quality materials including alloy reflectors and cases that are able to withstand the harsh Australian climate. In the event that your bulb may blow or you have accidentally damaged the light, no matter what part you require, it will be available.
• Performance – Powa Beam Spotlights have been regarded as one of the best on the market for over 60 years. They are used by fishers, farmers, hunters and professional shooters, you may have noticed a big silver light on a 4wd ute roof, that’s probably a Powa Beam!

Xenon HID or Quartz Halogen?

• We get asked many times about the difference between our QH & HID spotlights and which is better. The answer is not the same for everyone so we have tried to summarise the important considerations so you can make your own decision.
• Price – QH is much more affordable than HID so if price is important or you don’t require the extra punch that HID produces then we would say choose QH.
• Distance – If you are looking for maximum beam distance then HID is your winner
• Power Consumption – Our HID lights are only 55W & 70W which means they draw less power than a 100W QH while producing more light.
• Maintenance – QH has fewer moving parts and is powered by a cable to a bulb, whereas HID spotlights include a ballast to regulate the current to the light correctly.

Spotlight Warranty

• Powa Beam’s limited warranty guarantees that all Powa Beam brand products are to be free from defects in materials and workmanship for the period of 3 YEARS after retail purchase from an authorized dealer. Please retain proof of purchase for warranty purposes.
• This guarantee excludes, but is not limited to, damages from road hazards/accidents, improper installation (including wiring) or operation, modification, unauthorized repair, misapplication or deliberate damage. It also excludes any consequential damage or inconvenience caused by failure of the product. Powa Beam’s liability is limited to the repair or replacement at Powa Beam’ discretion. No warranty exists for bulbs, globes or lens unless specified.
