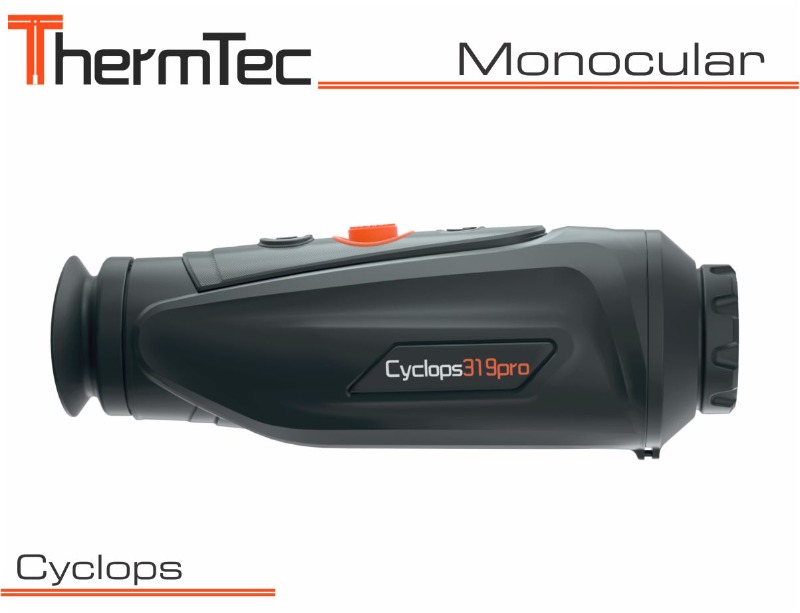

ThermTec Hand Held 19mm lens Thermal Cyclops

by
Model: CP319P
$ 2,199.00

ThermTec Hand Held 19mm lens Thermal Cyclops

by

The ThermTec Cyclops Pro series of thermal imaging monoculars are designed with a 12um, NETD

The ThermTec Cyclops monoculars feature a unique control method that makes these the easiest and most intuitive units on the market to operate.  Simply move the joystick to the right and you’re changing colour pallets, move it forward and you’re smooth zooming in, backward and you’re smooth zooming out. Double tap the joystick to bring up the main units control where you can set the image to how you like it, including brightness, contrast, sharpness and de-noise.  Throw in Electronic Image Stabilisation and you’ve got a unit that goes beyond anything else in its category.

  • 384 x 288 /12um
  • High Thermal Sensitivity – The NETD≤25mk ensures clarity and perfect detail recognition even in the conditions where the target and environment have very minimal temperature difference.
  • AI Intelligent Rangefinder – Based on deep learning algorithms, multiple object distances are automatically measured and shown on screen while observing.
  • Joystick Operation – The user-focused design of the joystick allows for easy operation of menu functions by simply toggling in any direction.
  • Long Battery Life – Built-in battery with 12H super long capacity ensures extended viewing and dedicated outdoor experience without the worry.
  • Bi-Mode Designed – WDR Mode (Wide Dynamic Range) is suitable for high-contrast lighting conditions; Object Mode ensures a more focused view on targets.
  • F/1.0 Aperture – The larger aperture enables greater infrared radiation capture allowing for increased clarity and sharper images.
  • GPS – Enable users to see their coordinates in real time making field activities safer.
  • Continuous Zoom – 1.0-6.0 x HD zoom ensures incredible sharpness with outstanding resolution and clarity from minimum to maximum magnification.
  • High Degree of Protection – IP67 water-proof, dust-proof and fog-proof.
  • Stable & Reliable Image – EIS (Electric Image Stabilization) technology provides clear and precise images/videos even in scenes with lots of motion.
Technical Datasheet:
Sensor Parameters
Items / Specification Cyclops 319
Detector Type Vox Microbolometer
Resolution / Pixel Spacing 384x288/12um
NETD ≤25mk@300k
Frame Rate 50Hz
Spectral Range 8~14μm
Lens 19mm (F#1.0, manual focus)
FOV 13.8°x 10.4°
Image Processing
Digital Zoom / Magnification 1~6x continuous / 1.8x
Color Palette 5+
Noise Reduction 3D noise reduction
Image Enhancement IDE、HDR
Display
OLED 0.39 inch,1024×768 resolution
Diopter Control -5~+5
Eye Distance 40mm
Function
OLED 8 modes
Language English
Reticle 6+, adjustable coordinates
Memory Card 16G
Heat Track Yes
AI Distance Measurement Yes
Laser Indicator Yes
Photo, Record, Playback Yes
GPS Yes
Power
Battery Type Internal Li-Ion Cell(18650 Li battery x 2)
Battery Life Continuous working time≥ 12h
Interface
Type-C Power charge, read data, output analog video
WI-FI Two-way Wi-Fi connection, APP remote control
Environmental Parameters
Working Temperature -20℃~+55℃
Protection Level IP67,1 meter drop resistance
Physical Parameters
Weight 470g (with battery)
Size 67mm×63mm×190mm
Accessories
External Cable Analog video cable, USB data cable
Other Accessory Wrist strap, plush bag, user manual
