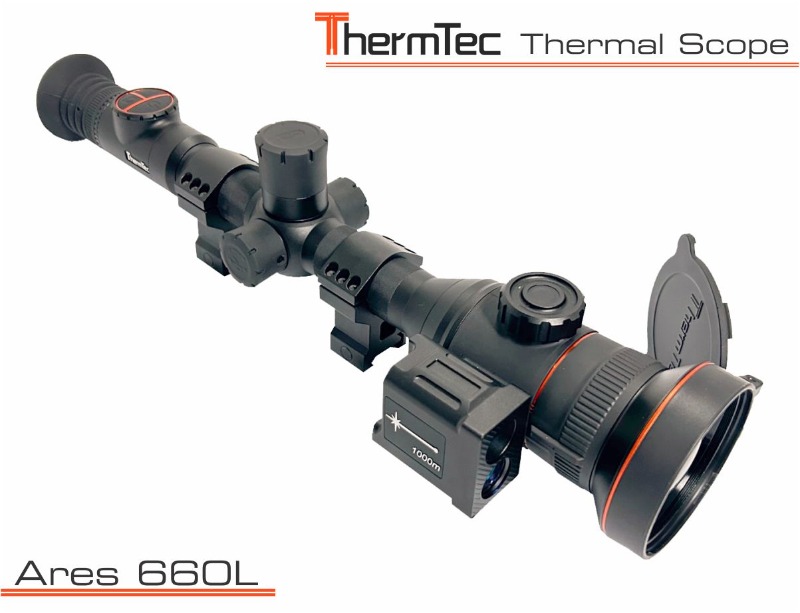

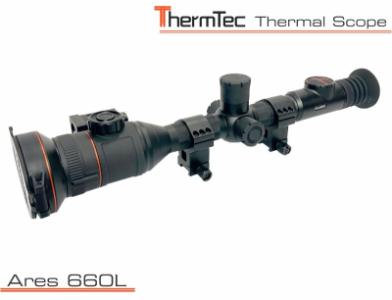

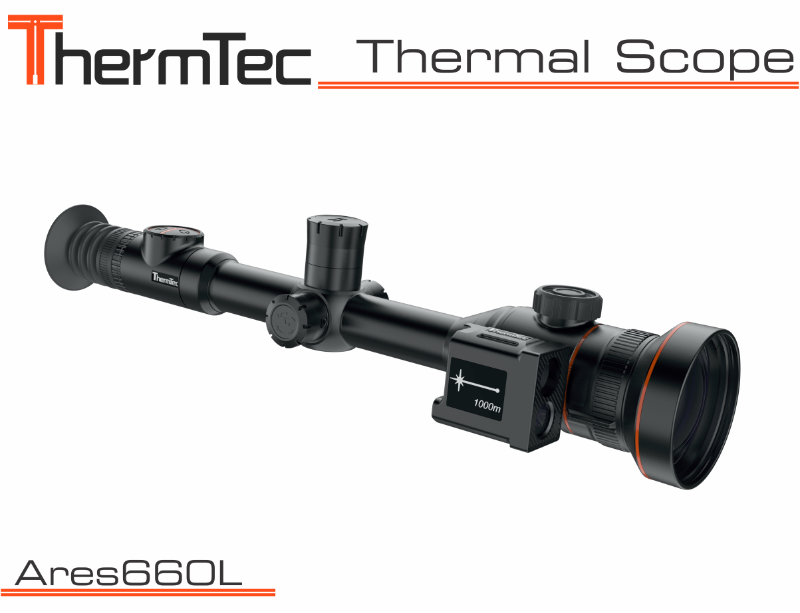

ThermTec Thermal Scope Ares660L (LRF) Laser Range Finder

by
Model: Ares660L
$ 7,028.00

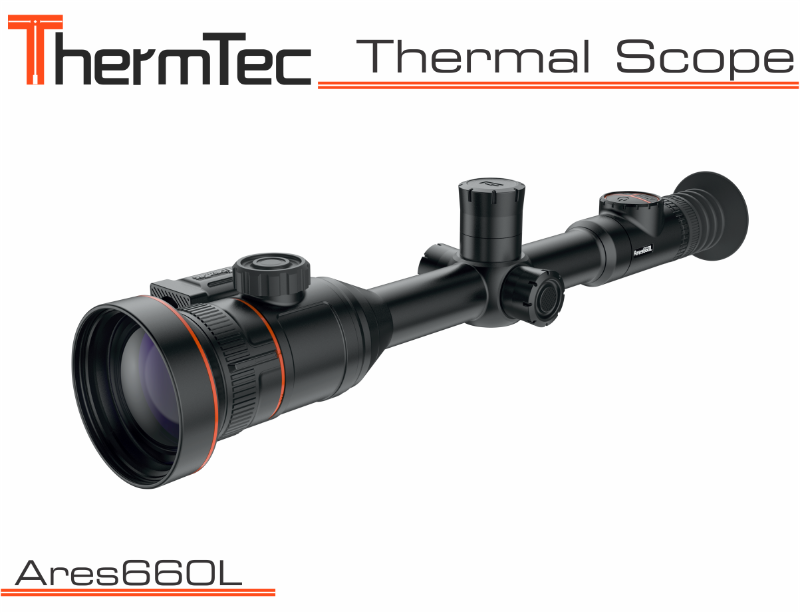

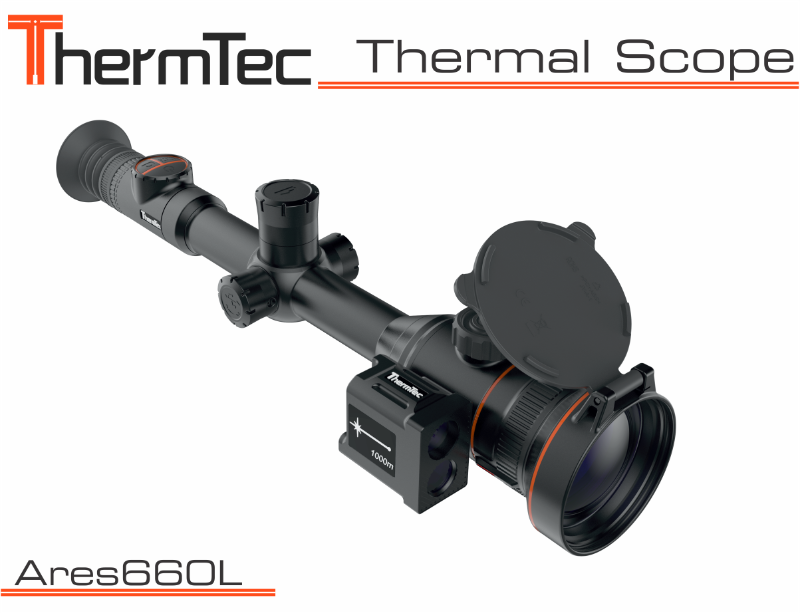

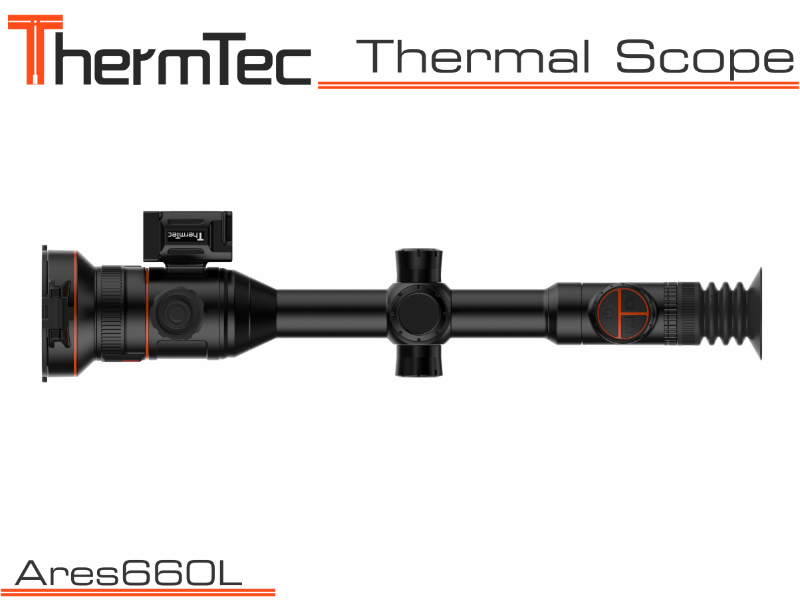

ThermTec Thermal Scope Ares660L (LRF) Laser Range Finder

by

The most advanced Thermal Optic is here, the ThermTec Ares660 Dual FOV Thermal Sight, featuring a 20/60mm focal length or 1.07 and 3.2 optical magnification.

https://youtu.be/M-O2fPUsRNY

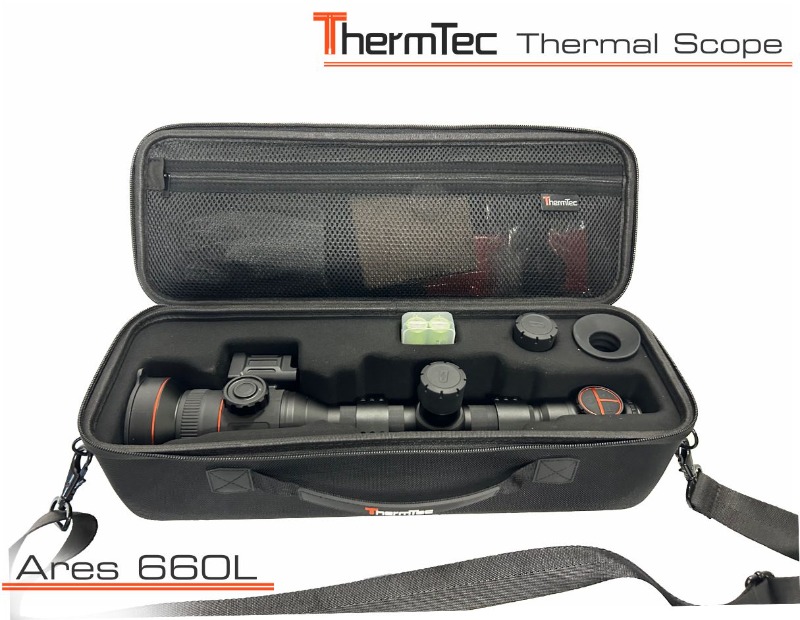

UNIT IS SUPPLIED WITH 2 x 18650 NITECORE BATTERIES AND CHARGER


The most advanced Thermal Optic is here, the ThermTec Ares660 Dual FOV Thermal Sight, featuring a 20/60mm focal length or 1.07 and 3.2 optical magnification.

Gone is the need to rely on digital zoom, the ThermTec Ares660 DOV Thermal Sight features seamless transition between optical planes without loss of zero.  Scan in 20mm, then optically zoom in to shoot at 60mm.  Never has the market seen a more advanced thermal scope.
Add in one shot and auto shot zeroing systems, video AND audio recording, a standard 30mm mounting system, the use of either 18500 or 18650 batteries, reliable WiFi that allows you to control the device, and you have the most well rounded scopes on the market.
This is the scope you've been waiting for.
Perfect Detail Recognition

  • The ThermTec Ares660 features a customer thermal imaging sensor with NETD

Non-Uniformity Correction Technology

  • Designed with shutter less and silent NUC technology, the ThemTec Ares360 supports uninterrupted shooting, making it more reliable as no shutter is locked during shooting with minimized noise.

1024 AMOLED Display

  • AMOLED display ensures sharp, richly contrasted thermal imaging.

F/1.0 Germanium Optics

  • Fast-aperture germanium optics ensure optimal heat energy transmissivity.

Two Way Wi-Fi Connection

  • Support both Wi-Fi and hotspot connections
  • Real-time image transmission

High Degree of Protection

  • IP67 water-proof, dust-proof and fog-proof

Specifications


Image Sensor


Uncooled Focal Plane Array


Max. Resolution


640x512


Frame Rate


50 Hz


Pixel Interval


12 μm


Response Waveband


8 μm to 14 μm


NETD


< 35 mK (25°C, F# = 1.0)


Lens (Focal Length)


20/60 mm


Detection Range


3000 m


Field of View


21.7°x17.4°/ 7.3°x5.9°


Min. Focusing Distance


5 m


Aperture


F1.0


Magnification


1.07 (20mm) / 3.2 (60mm)


Image Display


Display


1024 × 768, 0.39 inch, OLED


Image Mode


Black Hot, White Hot, Red Hot, Fusion, Violet


FFC (Flat Field Correction) Mode


Shutterless / Manual


Exit Pupil


6 mm


Eye Relief


50 mm


Diopter (Range)


-5 D to +5 D


System


Digital Zoom


1-6x smooth zoom


Capture Snapshot


Yes


Record Video


On-board video recording and Audio


Standby Mode


Yes


Storage


Built-in EMMC (16 GB)


PIP


Yes


DPC


Yes


Hotspot


Yes


Uniformity Correction


Shutterless / Manual


Hot Track


Yes


Reticle


Yes (7 types, black, white, red and blue)


Power Supply


Battery Type


One 18650or 18500  Rechargeable Lithium battery


Battery Operating Time


Up to 6 hours continuous running (@25°C, Wi-Fi off)


Battery Capacity Display


Yes


Anti-reverse Battery Connection


Yes


Overvoltage Protection


Yes


Type-C Power Supply


5 VDC/2 A, USB Type-C interface 3


Supports external power supply


General


Work Temperature/Humidity


-30°C to 55°C (-22°F to 131°F)


Protection Level


IP67

Specifications

SKU
Ares660L
Weight
0 kg
Length
0 cm
Width
0 cm
Height
0 cm
