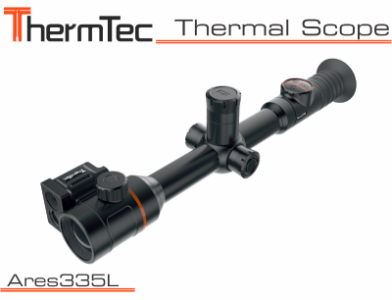

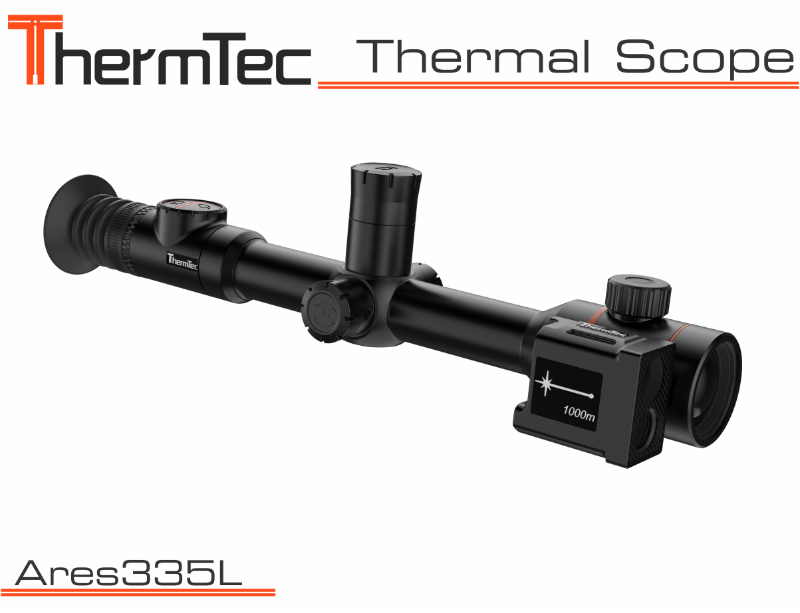

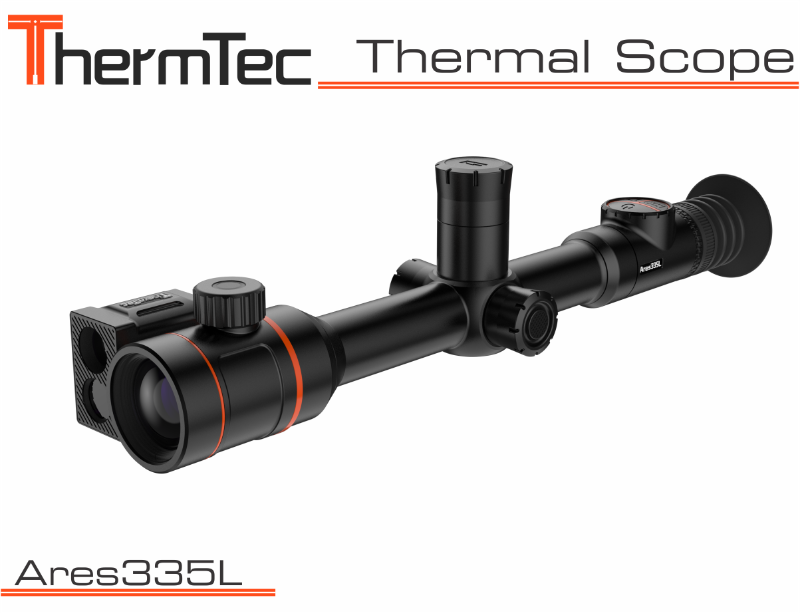

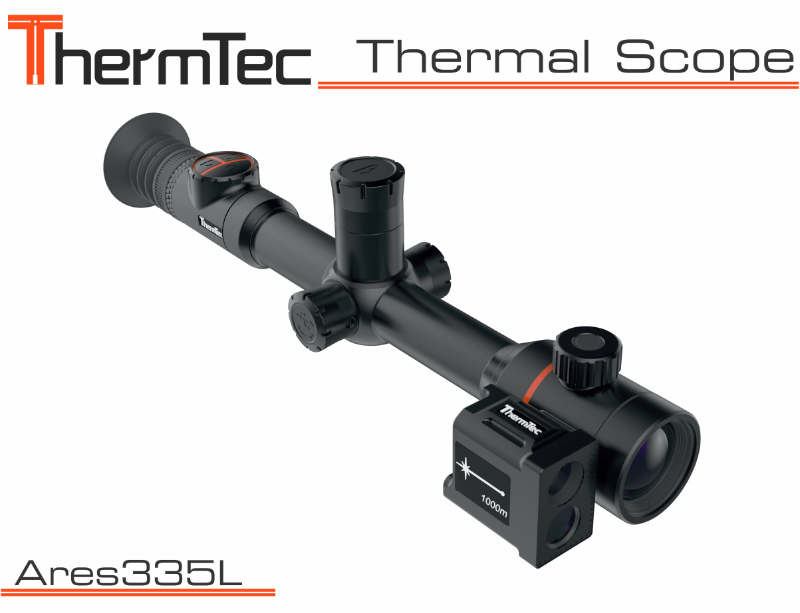

ThermTec Thermal Scope Ares335L (LRF) Laser Range Finder

by
Model: Ares335L
$ 4,400.00

ThermTec Thermal Scope Ares335L (LRF) Laser Range Finder

by
Magnification: 3.2 Recording: Video and Audio
Sensor Resolution: 384×288 Detection Range: 1750m
Focal Length: F35 / 1.0 Small Game: Short-Medium
Battery Life: 6H Big Game: Medium


The ThermTec Ares 335 thermal imaging scope offers solid performance and extensive features. The 2-way WiFi enables streaming to the Internet, the sensor has a resolution of 384 x 288 pixels, a person can be detected at a distance of 1.8 km, the display is one of the latest technology with AMOLED HD LEDs, it also offers 7 crosshairs, Backlight, 6 color modes,Audio Recording(!!!) and PIP.

UNIT IS SUPPLIED WITH 2 x 18650 NITECORE BATTERIES AND CHARGER

The ThermTec Ares 335 has a stunning vanadium oxide thermal imaging chip that is based on 12 microns at a resolution of 384 x 288 pixels.



The Display can display images and videos in high definition. The panel is modern AMOLED Equipped with LEDs, these are self-illuminating, which means that they have no post-fogging effect in non-exposed areas. They work extremely efficiently and contribute to a longer battery life. It can also be one Reticle backlight switched on in the colors black, white, red or blue.



The picture-in-picture offers a wide field of view in the main screen while allowing the PIP to zoom in independently.



Zeroing in is comfortable, as the connected hunting app helps with this. It can be up to 5 different zeroing profiles



The Crosshair can be selected in 7 different variations depending on preference and with 6 different colour pallets and independent brightness, contrast, denoise and sharpness adjustments, the ThermTec Ares 335 can be fine tuned for any environment.



The objective lens is 35 millimeters in diameter, resulting in a field of view width of over 13 meters over a 100 meter distance. A person can be detected at a distance of 1.8 kilometres. These are ideal properties for close-range and medium-range night hunting.



The classic design of the housing allows the Ares thermal imaging device to be mounted on a wide variety of platforms using 30mm rings which are included.



With the protection of IP67 Rain and dust cannot damage anything.



The ThermTec Smart Thermal app enables connection to smartphone to share observations with up to 4 colleagues at the same time. What is new is that the WLAN module can send and receive in order to use the mobile Internet connection of the smartphone to be able to stream live on the net.



With internal storage of 16 gigabytes you can capture countless photos or hours of video.



Power is supplied by a Li-Io battery with a barrel length of about 6h.


Add in one shot and auto shot zeroing systems, video AND audio recording, a standard 30mm mounting system, the use of either 18500 or 18650 batteries, reliable WiFi that allows you to control the device, and you have the most well rounded scopes on the market.
This is the scope you've been waiting for.
Perfect Detail Recognition

  • The ThermTec Ares335 features a customer thermal imaging sensor with NETD

Non-Uniformity Correction Technology

  • Designed with shutter less and silent NUC technology, the ThemTec Ares335 supports uninterrupted shooting, making it more reliable as no shutter is locked during shooting with minimized noise.

1024 AMOLED Display

  • AMOLED display ensures sharp, richly contrasted thermal imaging.

F/1.0 Germanium Optics

  • Fast-aperture germanium optics ensure optimal heat energy transmissivity.

Two Way Wi-Fi Connection

  • Support both Wi-Fi and hotspot connections
  • Real-time image transmission

High Degree of Protection

  • IP67 water-proof, dust-proof and fog-proof




Specifications


Image Sensor


Uncooled Focal Plane Array


Max. Resolution


384x288


Frame Rate


50 Hz


Pixel Interval


12 μm


Response Waveband


8 μm to 14 μm


NETD


< 35 mK (25°C, F# = 1.0)


Lens (Focal Length)


35mm


Detection Range


2300 m (car) 1800 m (man)


Field of View


7.5 * 5.6


Min. Focusing Distance


5 m


Aperture


F1.0


Magnification


3.2


Image Display


Display


1024 × 768, 0.39 inch, OLED


Image Mode


Black Hot, White Hot, Red Hot, Fusion, Violet


FFC (Flat Field Correction) Mode


Shutterless / Manual


Exit Pupil


6 mm


Eye Relief


50 mm


Diopter (Range)


-5 D to +5 D


System


Digital Zoom


1-5x smooth zoom


Capture Snapshot


Yes


Record Video


On-board video recording and Audio


Standby Mode


Yes


Storage


Built-in EMMC (16 GB)


PIP


Yes


DPC


Yes


Hotspot


Yes


Uniformity Correction


Shutterless / Manual


Hot Track


Yes


Reticle


Yes (7 types)


Power Supply


Battery Type


One 18650or 18500  Rechargeable Lithium battery


Battery Operating Time


Up to 6 hours continuous running (@25°C, Wi-Fi off)


Battery Capacity Display


Yes


Anti-reverse Battery Connection


Yes


Overvoltage Protection


Yes


Type-C Power Supply


5 VDC/2 A, USB Type-C interface 3


Supports external power supply


General


Work Temperature/Humidity


-30°C to 55°C (-22°F to 131°F)


Protection Level


IP67

Specifications

SKU
Ares335L
Weight
0 kg
Length
0 cm
Width
0 cm
Height
0 cm
Size
