SmartRest SpydaBot - VENOM

by SmartRest
$ 1599.00 AUD

SmartRest SpydaBot - VENOM

by SmartRest

Please read this important notice regarding SpydaBot Venom before you continue.
Eagleye takes pride in our service and the performance of our products. We diligently inspect all the gimbal units to ensure we deliver the best product possible which helps to protect the users from faults which can be an issue for this product if not checked properly.
BUYER BEWARE: We will refuse any warranty claim on any gimbal unit that was not supplied by Eagleye to a dealer or from this website. This is a great product and we are confident you will love the way we have built it.

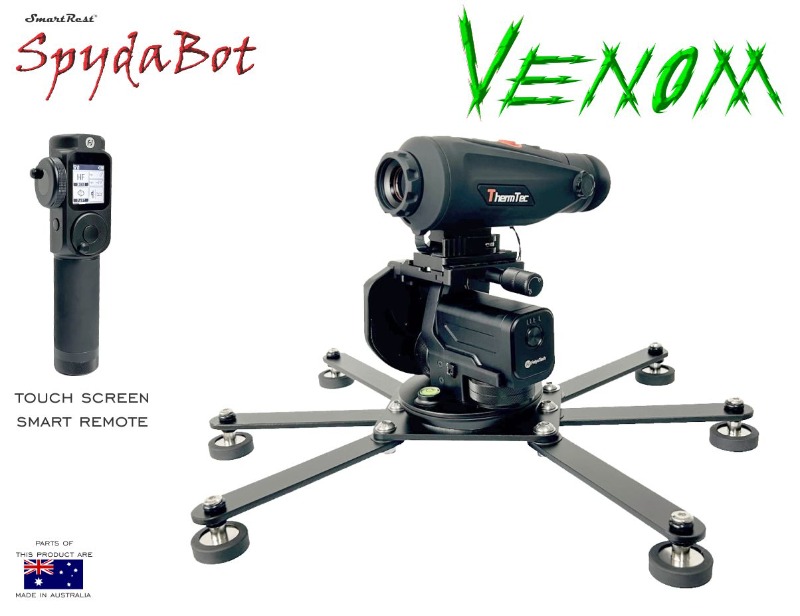

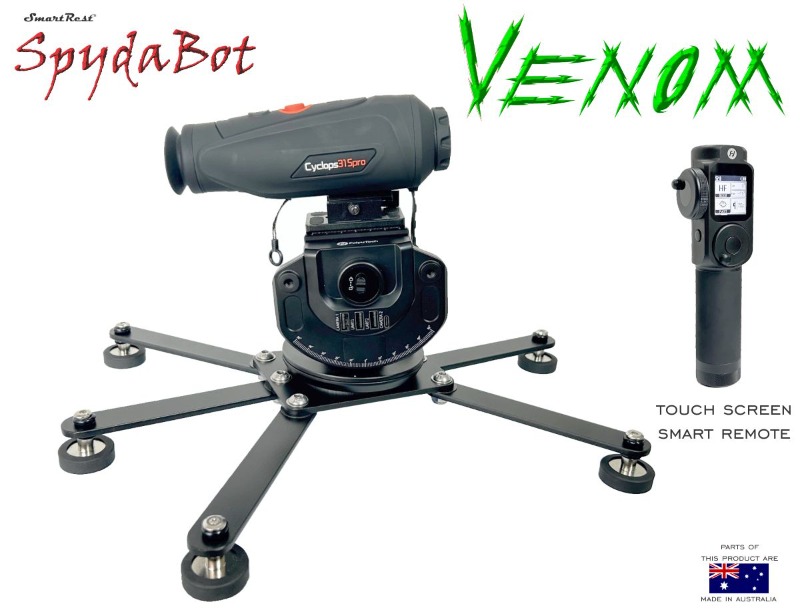

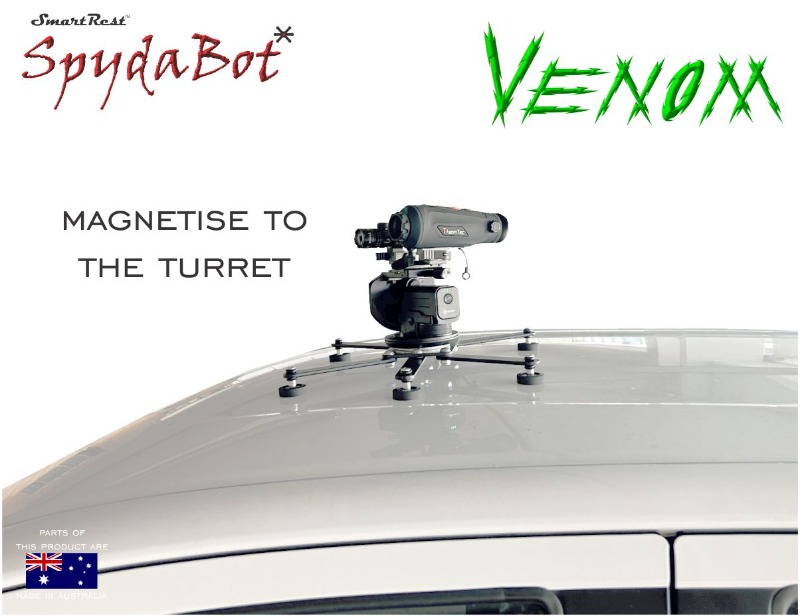

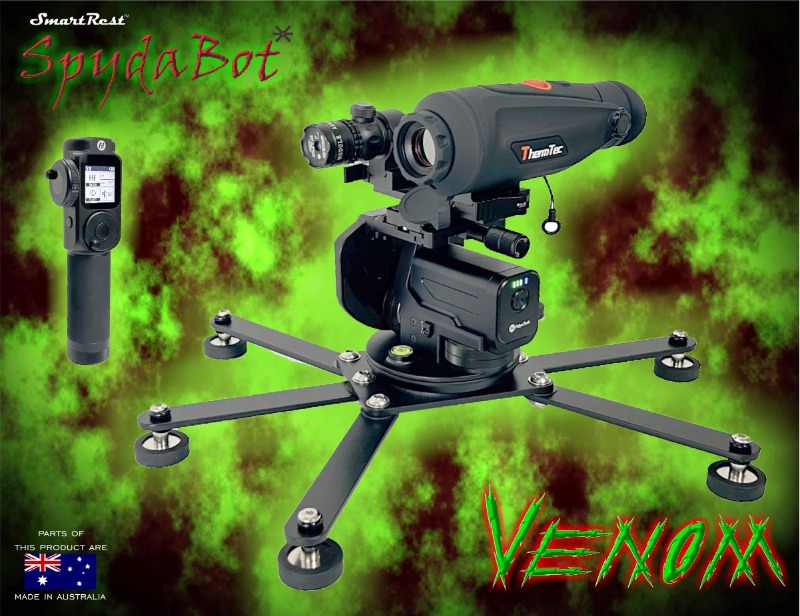

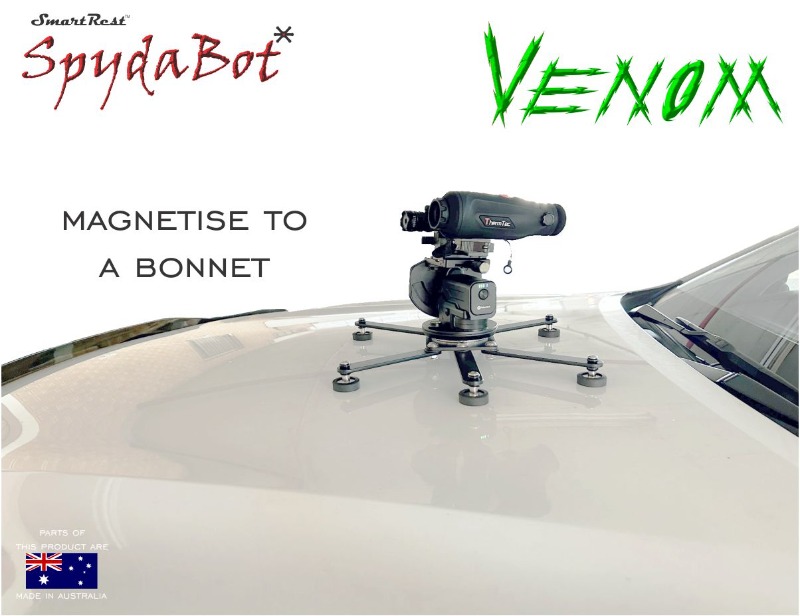

The SpydaBot VENOM is a wireless remote controlled robotic Gimbal mounted on six magnetic legs that magnetise to a metal surface. The application of this set up is usually on a vehicle bonnet or turret of a vehicle where the passengers of the vehicle can control a thermal camera from inside the vehicle. The thermal camera outputs a wireless image to a smart screen inside the vehicle for the passengers to view. The magnetic feet have been arranged in a wide foot print around the central unit to ensure excellent adherence to the vehicle even in intensely rough conditions.


The SpydaBot is used for:

  • Scanning with thermal camera from a vehicle
  • Scanning with a light from a vehicle
  • Pest control uses
  • Livestock monitoring
  • Security


  • Scanning from vehicle
  • Easy mounting technique makes it fast to mount and remove
  • All passengers in the vehicle can view the screen
  • Quick release system so the thermal camera can be easily removed and used on a wide range of SmartRest units
  • Long lasting batteries
  • Rotation speed - full revolution in less than 2 seconds

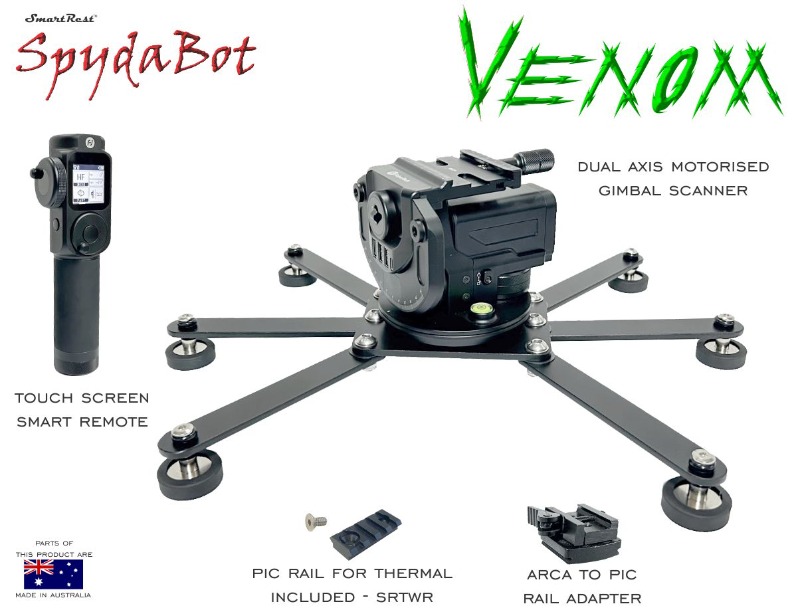

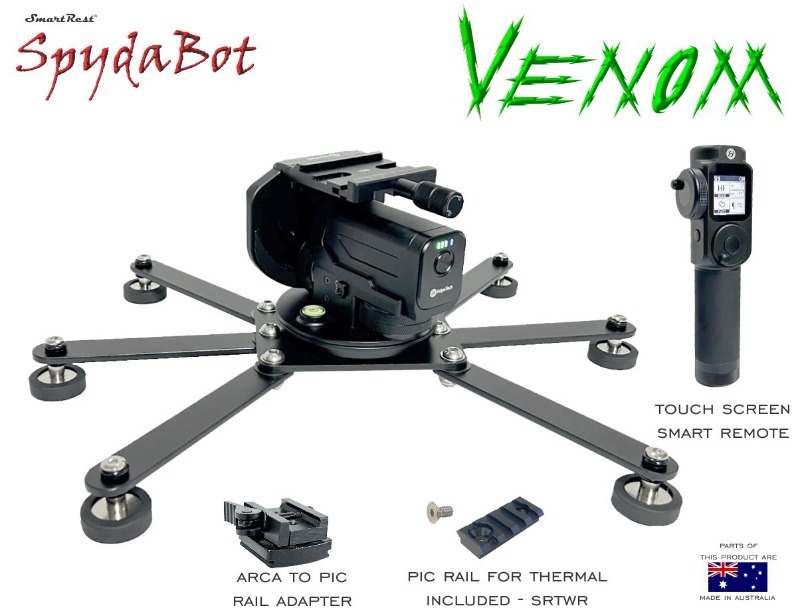

The Venom model includes:

1 x Pan and tilt Intelligent Dual Axis Stabilizer Gimbal (Technical features listed below) (includes wiring for chargers)

1 x Hand Held touch screen remote control

1 x Arca to Pic Rail clamp (SRAPA) + Pic rail for thermal (SRTWR)

1 x Aluminium mounting base with 6 x steel legs (Upgraded Base)

6 x Magnetic feet with rubber grommet dampeners and silicone protective covers

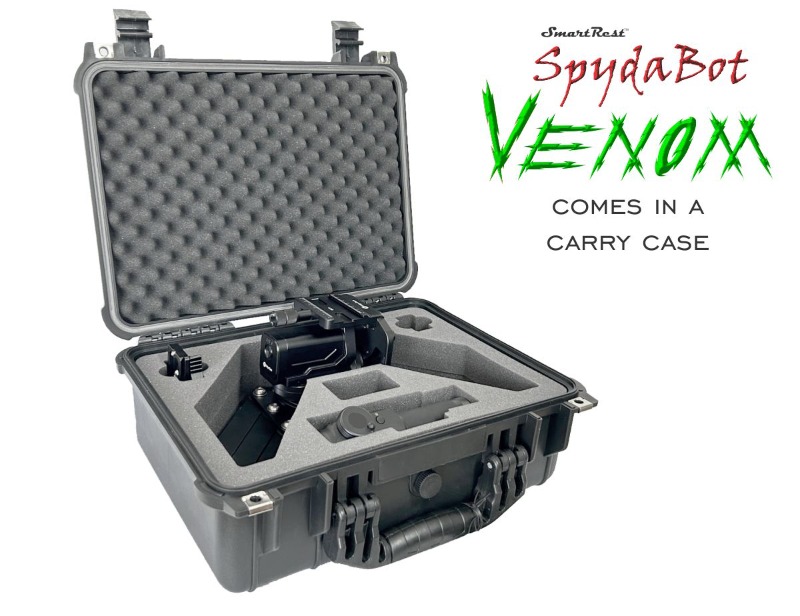

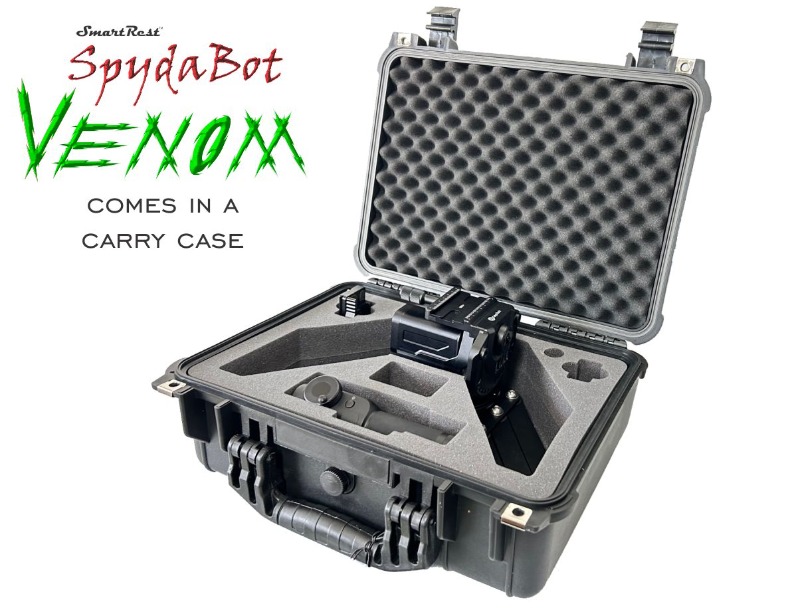

1 x Evolution Gear Carry Case with custom cut foam insert

Technical Features:

Unit Weight - 2.9kg
Payload capacity - 4.5kg - Supports all kinds of DSLR and part of cinema cameras.
Made of Aviation Aluminum-alloy, strong in construct and light in weight.
Remote control with oversized touch screen can set up all the shooting parameter. With 15 meters control distance, You can monitor and check all working status from a distance.
Powerful Remote control to control with auto rotation for adjustable speed 360 degree auto scan.
Integrated quick release battery *1,2200mah, 14.8V, 32.56Wh
Remote Control: 18650 rechargeable*1,2200mah, 3.7V, 8.14Wh
5 .5hours for consistent working, 8 hours for standby .
Gimbal: Charge the battery with USB2.0 to USB C cable (supplied). 2hrs to fully charge (DO NOT QUICK CHARGE).Three green light indicators will all glow when fully charged.
Remote Control: Charge the remote with USB2.0 to Micro USB cable (supplied). 50min full charge (DO NOT QUICK CHARGE).

Sync your Venom Remote with the gimbal pan tilt machine: (this would already have been done from Eagleye)

  1. Make sure the Gimbal is turned off
  2. Turn your remote ON
  3. Slide the touch screen from right to left twice to find “REMOTE MATCH”
  4. Touch “REMOTE MATCH”
  5. Turn the gimbal machine ON by holding the on button down
  6. They should begin pairing straight away
  7. Let it pair before using it



3 kg
0 cm
0 cm
0 cm
< Back to Parts & Accessories for Vehicle Door Mounts

Enquire about this item
